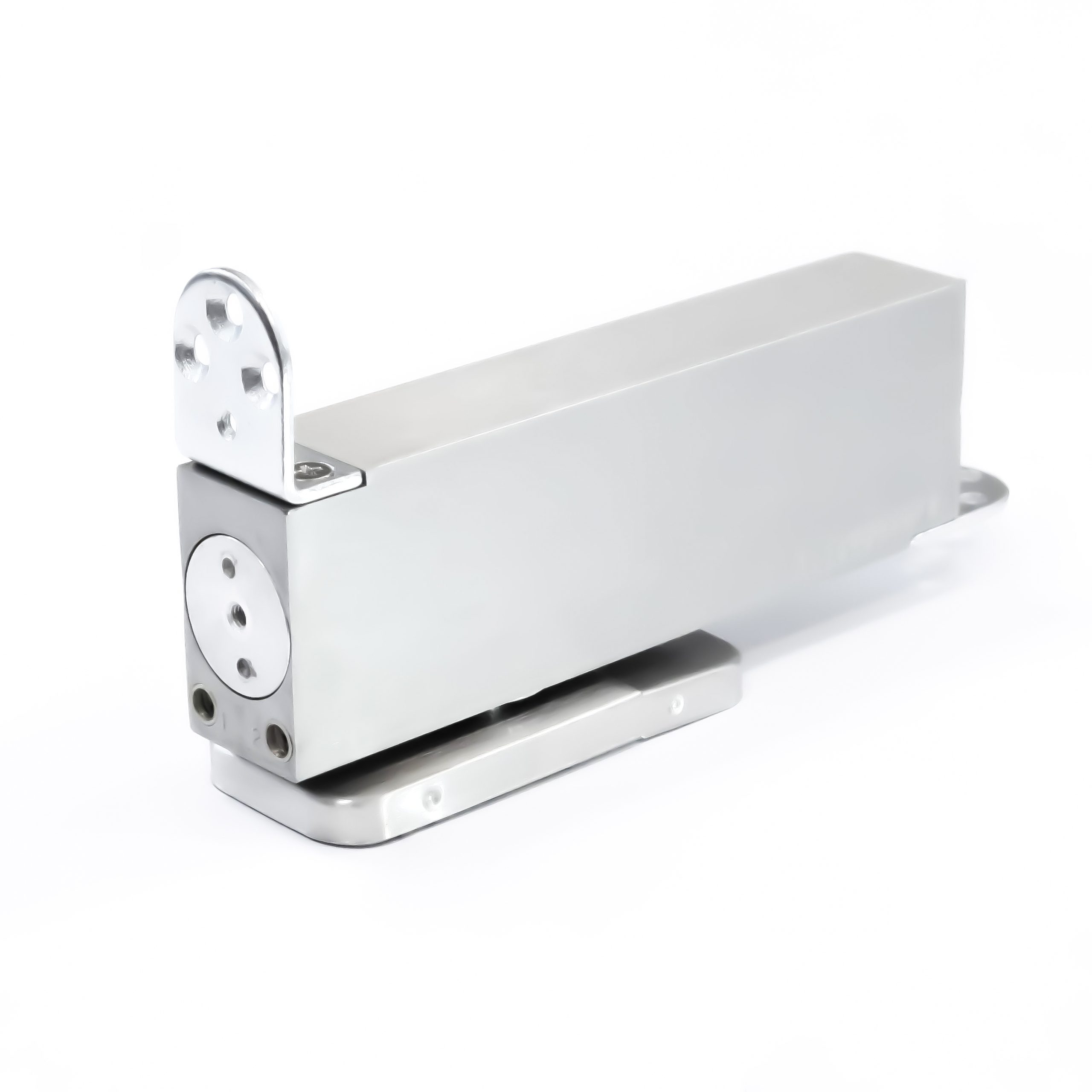

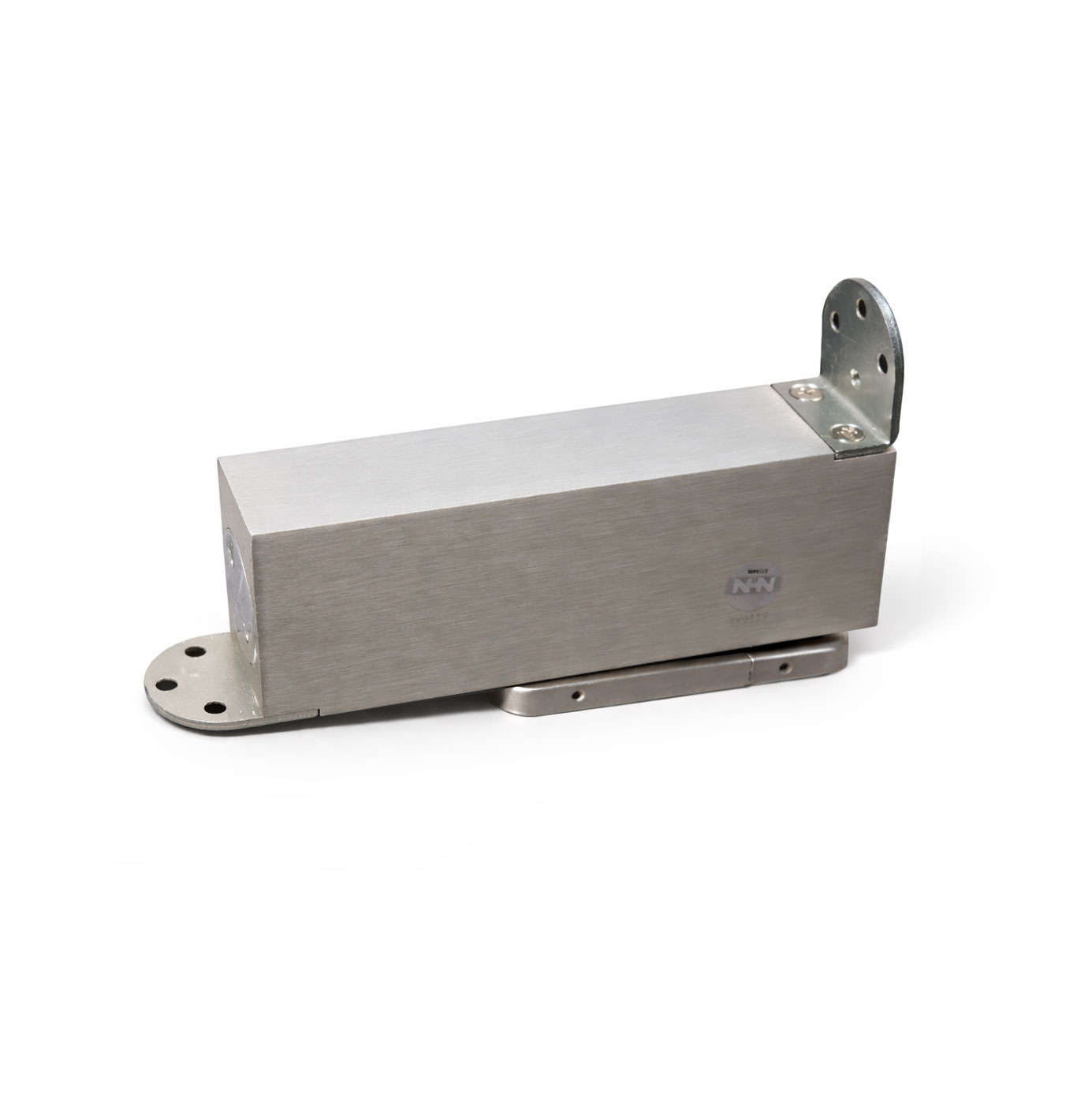

Premium Pivot Door Closers – PDC100W Series by Kenwa
The Kenwa PDC100W Series pivot door closers are high-performance, slimline hydraulic closers designed to deliver smooth double-action movement, efficient closing, and easy installation for interior wooden, steel, or aluminum doors. With advanced cam-type technology, adjustable closing speeds, and optional hold-open functionality, this series is ideal for commercial and residential interior entrances.
Product Highlights
Smart Hydraulic Pivot Mechanism
The PDC100W Series uses Kenwa’s latest cam-type design, resulting in:
-
Low opening resistance for effortless door operation
-
Efficient closing torque for reliable self-closing performance
-
Adjustable closing and latching speeds via two independent valves
-
Suitable for double-action doors that swing both ways.
- Quick and easy installation.
Designed for Wooden, Steel & Aluminum Doors
-
Maximum door width: up to 1000 mm for 103W model, 1250 mm for 105W model
-
Maximum weight: up to 100 kg
-
Ideal for offices, meeting rooms, hotels, and retail spaces where a concealed and elegant closing system is desired.
Two Operating Modes: With or Without Hold-Open
Choose between:
-
Standard models (PDC103W / PDC105W): Self-closing motion without hold-open
-
Hold-open models (PDC103W-S / PDC105W-S): Door pauses at 90° when opened, useful for moving items or high-traffic moments
Easy Installation & Adjustment
Kenwa designed this series for efficient installation and final adjustment, helping save time and labor:
-
No floor preparation required
-
Simple final adjustments, 3mm backward / forward, 3mm left / right, ± 4° alignment.
-
Works reliably in temperatures from -20°C to +40°C
-
Includes top pivot set with satin stainless steel cover (Polished stainless steel available)
-
5 year Guarantee against faulty workmanship.
Performance & Efficiency
With a focus on smooth operation and long-lasting durability, the PDC100W Series offers:
-
Light opening feel with high closing efficiency
-
Double-action movement with up to 150° maximum opening
-
Over 70% efficiency for smoother swing and reliable closing motion
Model Comparison
| Model | Function | Max Door Width | Max Door Weight | Max Opening Angle |
|---|---|---|---|---|
| PDC103W | Non-hold open | 1000 mm | 100 kg | 150° |
| PDC103W-S | Hold-open 90° | 1000 mm | 100 kg | 150° |
| PDC105W | Non-hold open | 1250 mm | 100 kg | 150° |
| PDC105W-S | Hold-open 90° | 1250 mm | 100 kg | 150° |
⚠️ Note: It is recommended to use a door stop at 150° by the non-hold open models and at 90° by the hold open models.
Model PDC-103W (S) can only be installed on interior doors, not suitable for exterior doors or doors exposed to strong winds. Even
for PDC-105W (S) models please note that due to the cam type technology heavy winds might cause opening of the door to a
certain angle.
Why Choose the PDC100W Series?
The Kenwa PDC100W Series stands out for:
-
Reliable self-closing performance with adjustable settings
-
Low resistance opening and smooth closing action
-
Flexible configurations to suit different door needs.
-
Easy installation and long-term durability
Conclusion
If you’re looking for a premium pivot door closer that combines high efficiency, smooth operation, and easy installation, the Kenwa PDC100W Series delivers an elegant and dependable solution for wooden, steel & Aluminum doors.
