Heavy-Duty Pivot Hinge for Automatic Smooth Door Control

The Center Hang Type Auto Hinge is a built-in self-closing pivot hinge designed for heavy doors where conventional hinges and Overhead closers are not ideal due to their limited weight capacity and their less appealing appearance.. It integrates a hydraulic and spring mechanism in one unit to achieve smooth, controlled, and reliable self-closing performance while maintaining an elegant, hidden appearance. This hinge type is widely used in commercial, institutional, and architectural applications requiring robust performance and precise engineering.

---

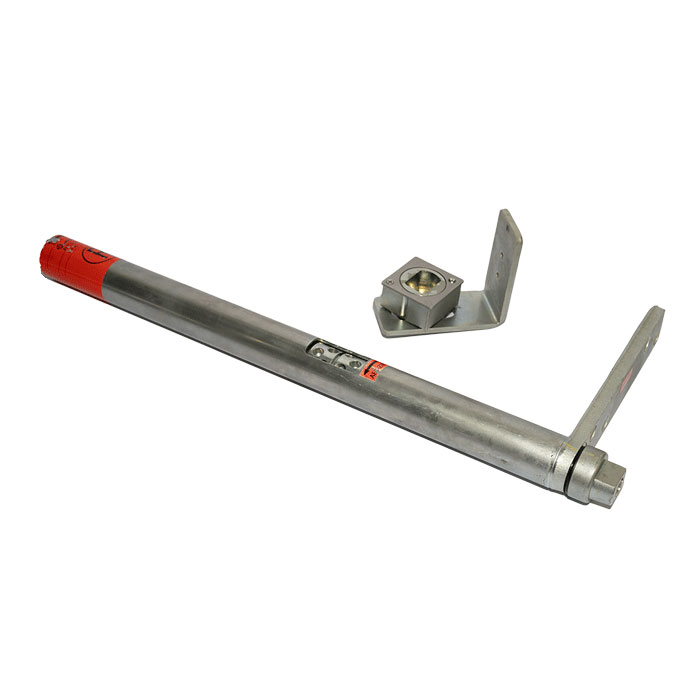

What Is a Center Hang Type Auto Hinge?

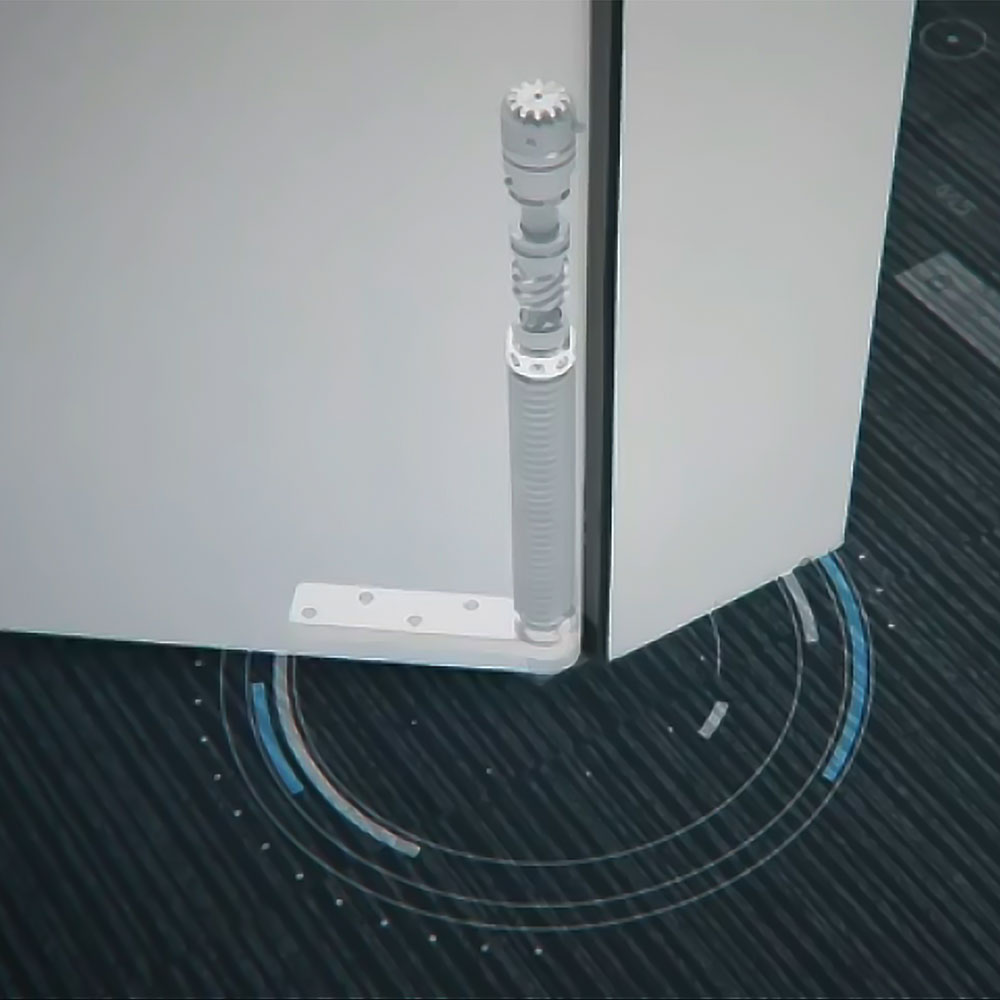

A center hang type auto hinge is a concealed pivot hinge with an integrated self-closing mechanism. Unlike standard flag hinges, the auto hinge is built into the door leaf and frame, which enables the door to pivot around a central axis while automatically closing via hydraulic control.

This hinge is especially useful where:

• overhead closers are impractical,

• aesthetic continuity is required,

• high-frequency door cycles demand smooth automatic operation.

---

Key Technical Features

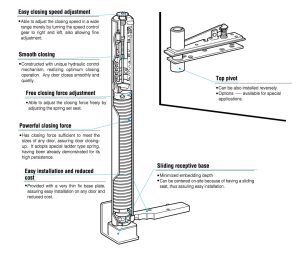

Integrated Hydraulic and Spring Mechanism

The hinge combines a hydraulic control system with precision springs to create balanced opening and automatic closing motion. This results in a light opening force with a firm and controlled close, minimizing abrupt movement and enhancing safety.

Wide Range of Door Capacity

Depending on the model series (e.g., AFD8 to AFD40), the center hang auto hinges support doors from small frames up to very large heavy doors with capacities reaching approximately 1000 kg in heavier models.

180° Opening Capability

This pivot hinge supports a 180° opening capability in one direction, providing maximum accessibility while maintaining precise closing control.

Adjustable Closing Performance

The closing force is freely adjustable by winding the spring, and the closing speed can also be set by simply turning the speed-control gear. This ensures consistent automatic performance tailored to the door’s weight and usage conditions. Decorative rubber plates are included to conceal the speed-control and spring-winding windows.

---

Model Specifications Overview

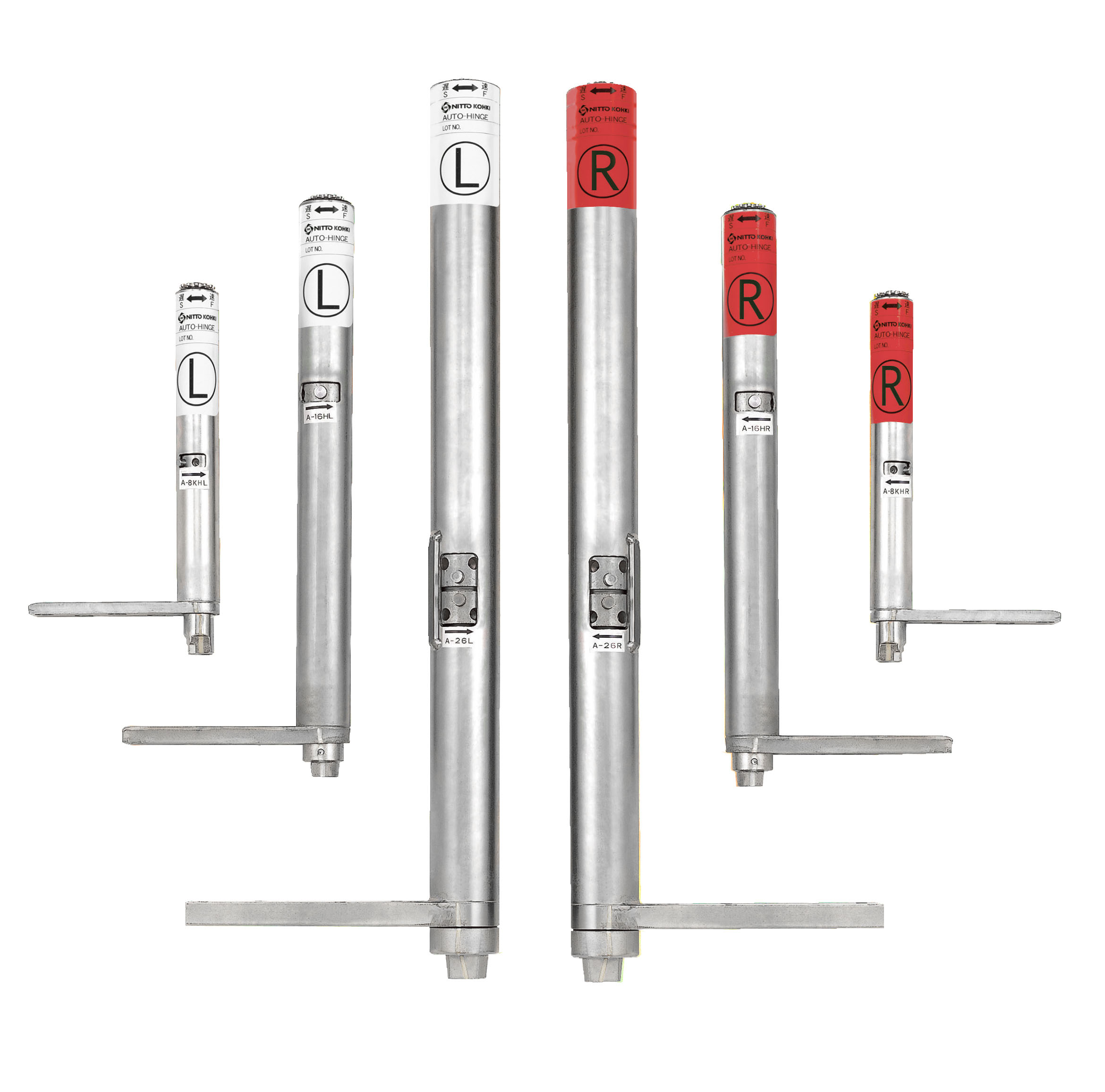

Typical center hang auto hinge model families from KENWA / NITTO KOHKI include:

Note: Always select models based on door width, height, and weight. Comprehensive engineering charts should be consulted during specification or design.

---

Applications & Use Cases

Center hang auto hinges are ideal for environments such as:

• Commercial buildings and corporate entrances

• Heavy interior doors and architectural pivot doors

• Industrial facilities requiring robust self-closing systems

• Public buildings with high door cycle frequency

• Locations where overhead closers are not practical or desirable

---

Advantages Over Traditional Systems

✔ Integrated Closing Mechanism: Eliminates the need for separate overhead closers and visible hardware, enhancing aesthetics and reducing installation complexity.
✔ High Load Capacity: Supports heavy doors up to roughly 1000 kg in large models.
✔ Smooth Hydraulic Action: Reduces noise and wear by distributing closing force evenly.
✔ 180° One-Side Opening: Enables the door to open a full 180 degrees to either the left or right side while maintaining smooth and consistent self-closing performance.
✔ Wide Temperature & Usage Range: Designed for heavy-duty applications with long cycle life.

---

Performance Testing

This product has successfully passed extensive performance tests, including 100,000 consecutive opening and closing cycles. Its quality and durability have been fully verified, and it is backed by a two-year warranty.

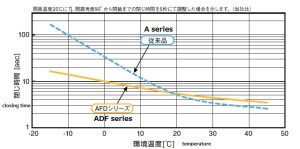

As illustrated in the chart above, Models 22, 30, and 35 (shown in yellow) demonstrate highly stable door movement speeds within a temperature range of 0°C to 40°C. Seasonal temperature changes during winter and summer have minimal impact on operating speed, resulting in little to no need for readjustment.

---

Engineering Considerations

When specifying a center hang auto hinge:

• Match hinge model with door width and weight

• Consider frequency of use to ensure longevity

• Verify pivot point alignment for correct operation

• Confirm closing resistance settings based on expected environment

Proper installation according to manufacturer guidelines is essential for long-term performance and safety.

---

Conclusion

The Center Hang Type Auto Hinge offers a technical, concealed, and heavy-duty solution for doors where traditional hinges and overhead closers are not suitable. Its hydraulic self-closing mechanism, high load capabilities, and smooth motion make it an excellent choice for modern architectural and commercial installations.

Smooth motion. Reliable performance. Invisible engineering.
