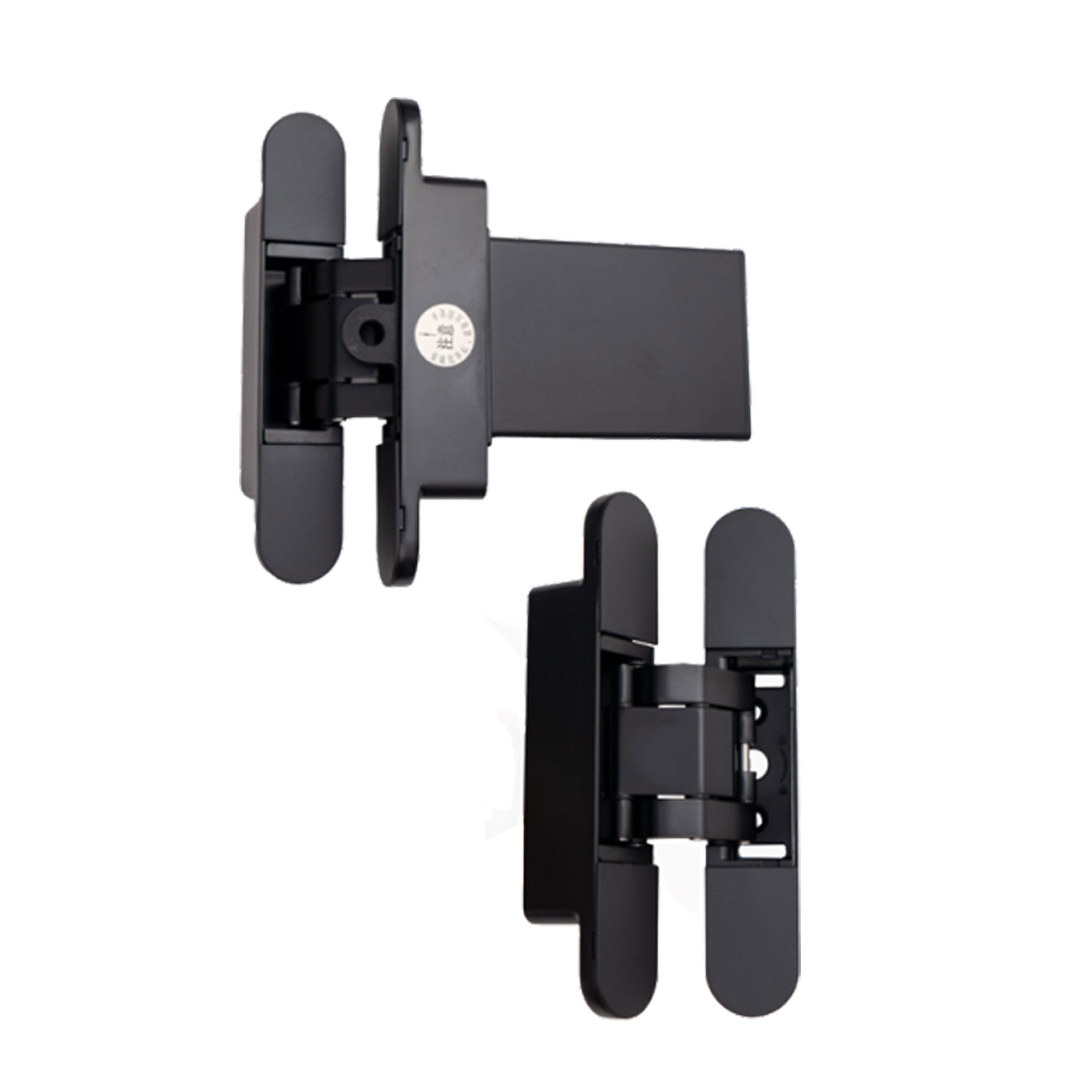

Hydraulic Concealed Door Hinge
Where Elegance Meets Silent Motion
Welcome to the next generation of door hardware with NHN Hydraulic Concealed Door Hinge. Designed for the modern aesthetic, this innovative hinge offers a truly invisible solution, mounting discreetly within the door and frame to maintain clean lines and a seamless look – as if the door is floating. But its beauty is more than skin deep. The integrated hydraulic system ensures a smooth, silent, and controlled swing, gently closing the door without any slamming or jarring. This not only enhances user experience and preserves the longevity of your doors and hardware but also contributes to a tranquil environment.
Key Features:
- Invisible Design: Creates a minimalist, contemporary aesthetic.
- Hydraulic Soft-Close: Guarantees a smooth, silent, and cushioned door movement.
- Slam Prevention: Protects the door, frame, and hardware from damage and reduces noise.
- Superior Durability: Crafted from high-quality materials for long-lasting performance.
- Service life: 200.000 times
- Ease of Installation: Engineered for straightforward fitting and setup.
Optional Features:
- Available Finishes: Black, Gold, Silver and Grey ( other colors can be customized )
- Latching: with latching /no latching
Applications:
- Interior doors in modern residential and commercial spaces
- Luxury hotel suites and executive offices
- Architectural projects emphasizing minimalist design
Technical Specifications and Load Capacity
- Maximum door weight: 120 kg
- Maximum door width: 1000 mm
- 2D adjustment: Left and right ±2.5 mm / Up and down ±2.5 mm
- Main material: Zinc alloy, aluminum alloy and ss304
- Maximum open angel: 125°
- No hold open
- Closing force: 7N.m
- Applicable temperature: -10°c _ 45°c
Note: For detailed guidance on the number of hinges needed, please refer to the selection chart in the catalogue.
